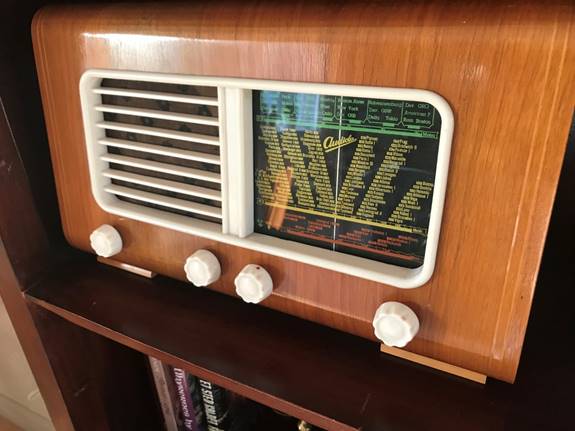

About 10 years
ago, I bought this old Audiola radio. It is on
display in my livingroom, just for the fun and
because it is a beautiful old historic piece of electronic
.
|
|
||||
|
Year: 1954 |
Category: Broadcast
Receiver - or past WW2 Tuner |
||||
|
Valves / Tubes |
|
Main principle |
Super-Heterodyne
(Super in general); ZF/IF 470 kHz; 2 AF stage(s) |
|
Wave bands |
Broadcast, Long
Wave and Short Wave. |
|
Details |
|
|
Power type and voltage |
AC/DC-set / 220 Volt |
|
Loudspeaker |
Permanent Magnet
Dynamic (PDyn) Loudspeaker (moving coil) |
|
Power out |
4 W (unknown quality) |
|
Material |
Wooden case |
|
Shape |
Tablemodel, low profile
(big size). |
|
Dimensions (WHD) |
390 x 230 x 200 mm
/ 15.4 x 9.1 x 7.9 inch |
|
Notes |
Sept. 1st 1954
manufacturing date (cabinet stamp) proven. |
|
|
|

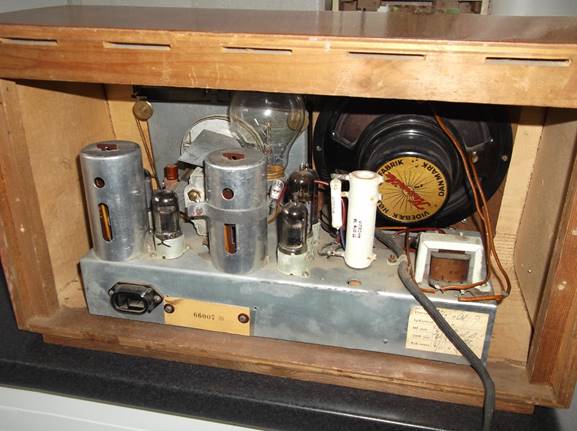

It does not work,
I suppose some of the old tubes are defective. So to

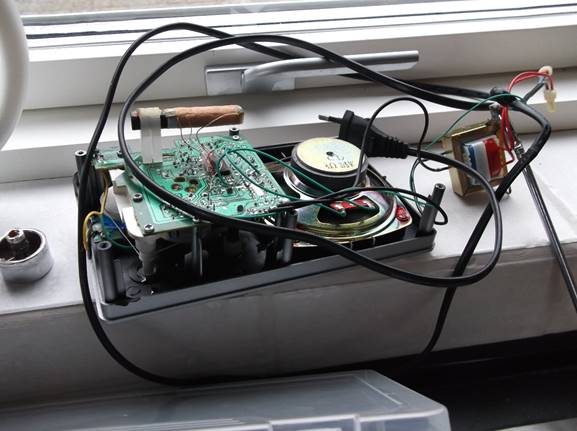

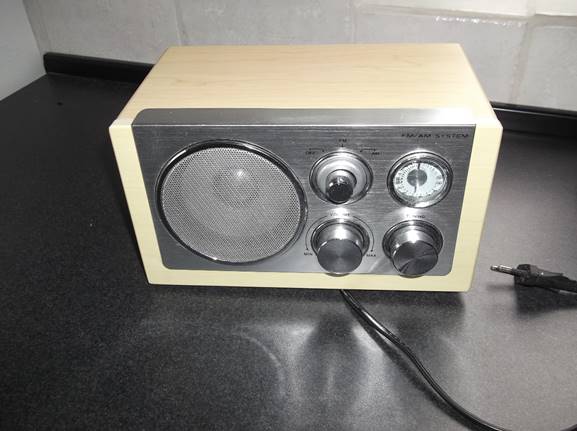

give it a new life I decided to rebuild it. I bought newer radio with a good
sound and stripped it to pieces.

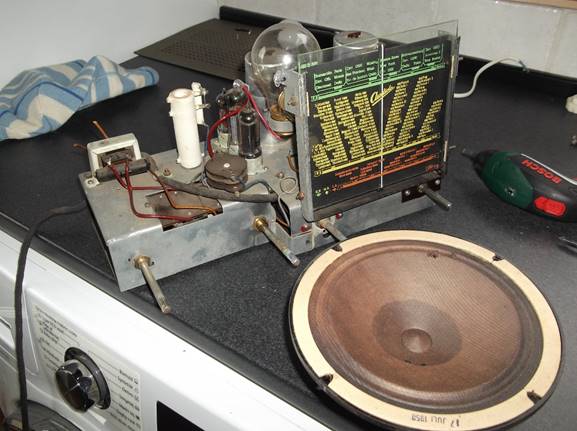

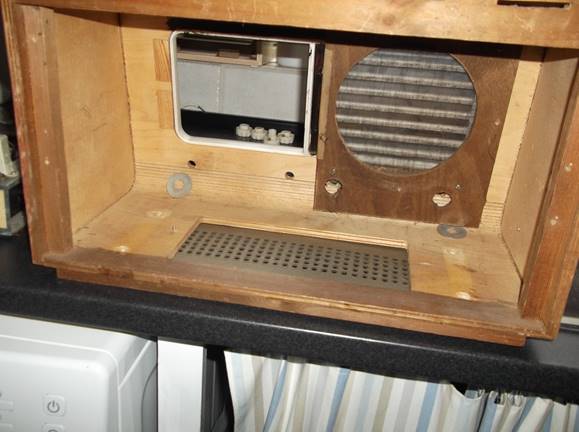

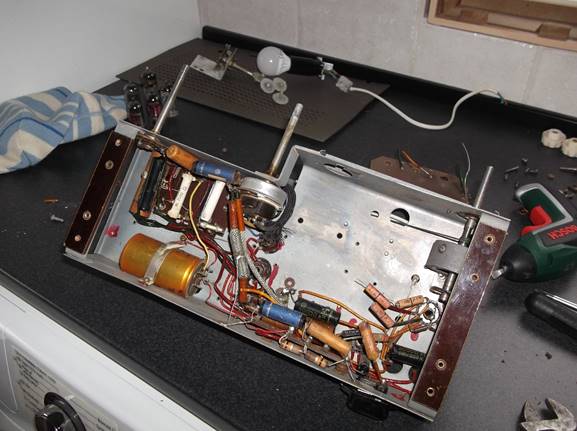

Also
the Audiola was stripped.

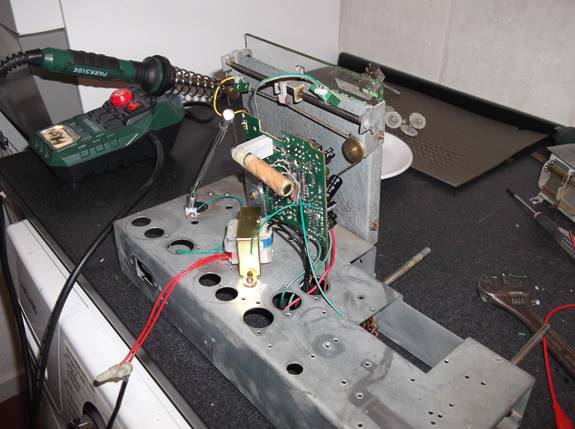

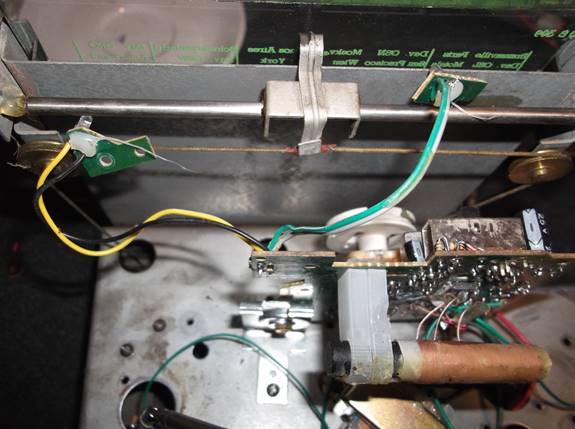

And then I
began to refit the new radio into the old frame. Especially it was difficult to
mount and adjust the frequency select.

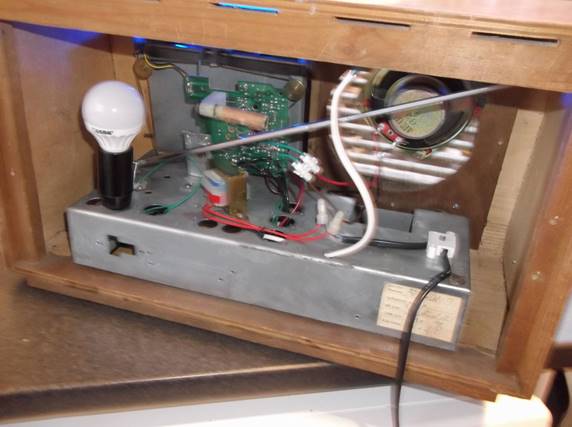

The result is
a perfect FM radio with excellent sound….. and a lot
of fun making it.
This is a link
to a demo video of the result, press here
